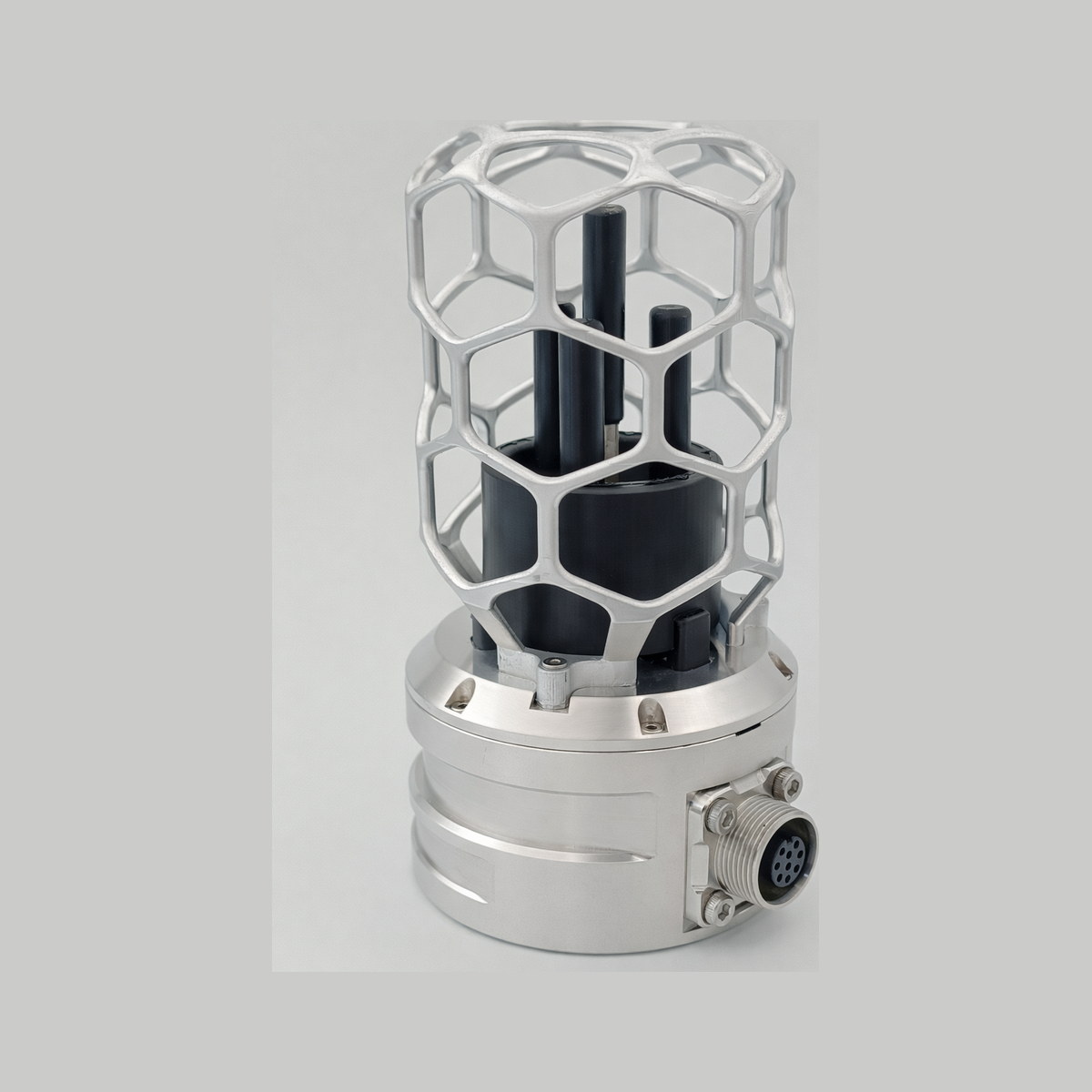

A compact USBL system designed for installation both on a shore-based or surface reference station and directly on an underwater vehicle. The symmetrical architecture allows both units to mutually determine their relative bearing, providing an additional navigation channel – acoustic heading – which improves navigation stability and overall accuracy.

The system supports bidirectional acoustic data transmission at rates of up to 170 bit/s, with an address space for up to 64 devices, and reliable operation at ranges of up to 1 km. The operating acoustic frequency band of 26…34 kHz can be used as a whole or divided into sub-bands, enabling the simultaneous operation of multiple devices within the same water area.

* Angular resolution does not represent absolute positioning accuracy. Final accuracy depends on multiple factors, including acoustic propagation conditions, installation geometry, baseline length, synchronization quality, noise level, multipath effects, platform dynamics, and environmental parameters such as temperature, salinity, and water column stratification.

• ROV navigation and inspection
  Relative positioning, bearing estimation, and acoustic heading support for inspection and work-class ROVs.

• AUV guidance and navigation aiding
  Underwater positioning and navigation assistance in GNSS-denied environments.

• Surface-to-underwater positioning (USV / shore-based)
  Positioning and communication between surface or shore stations and submerged assets.

• Multi-vehicle and multi-node systems
  Simultaneous operation of multiple vehicles or beacons using addressable acoustic communication.

• Confined and challenging environments
  Operation in ports, pools, tanks, and under-ice conditions where optical or magnetic methods are limited.

EXPORT CONTROL — THE ITEM DESCRIBED HEREIN MAY BE SUBJECT TO EXPORT CONTROL REGULATIONS. EXPORT MIGHT
REQUIRE A PRIOR AUTHORIZATION FROM COMPETENT AUTHORITIES
