Sonar SIDE-ENHANCED

SKU: SSS_Enhanced_v1

$685.00

Available on backorder

Available on backorder

Description

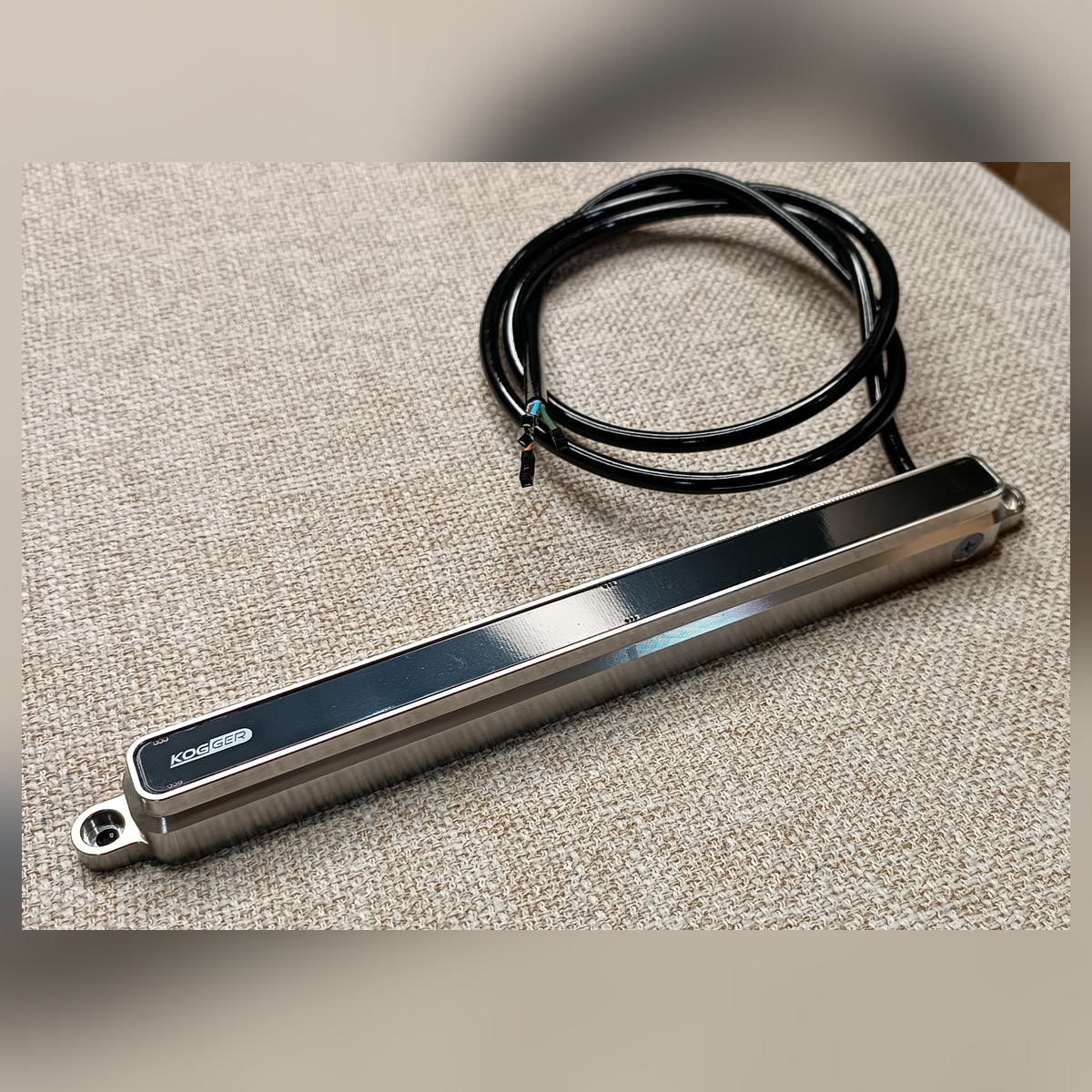

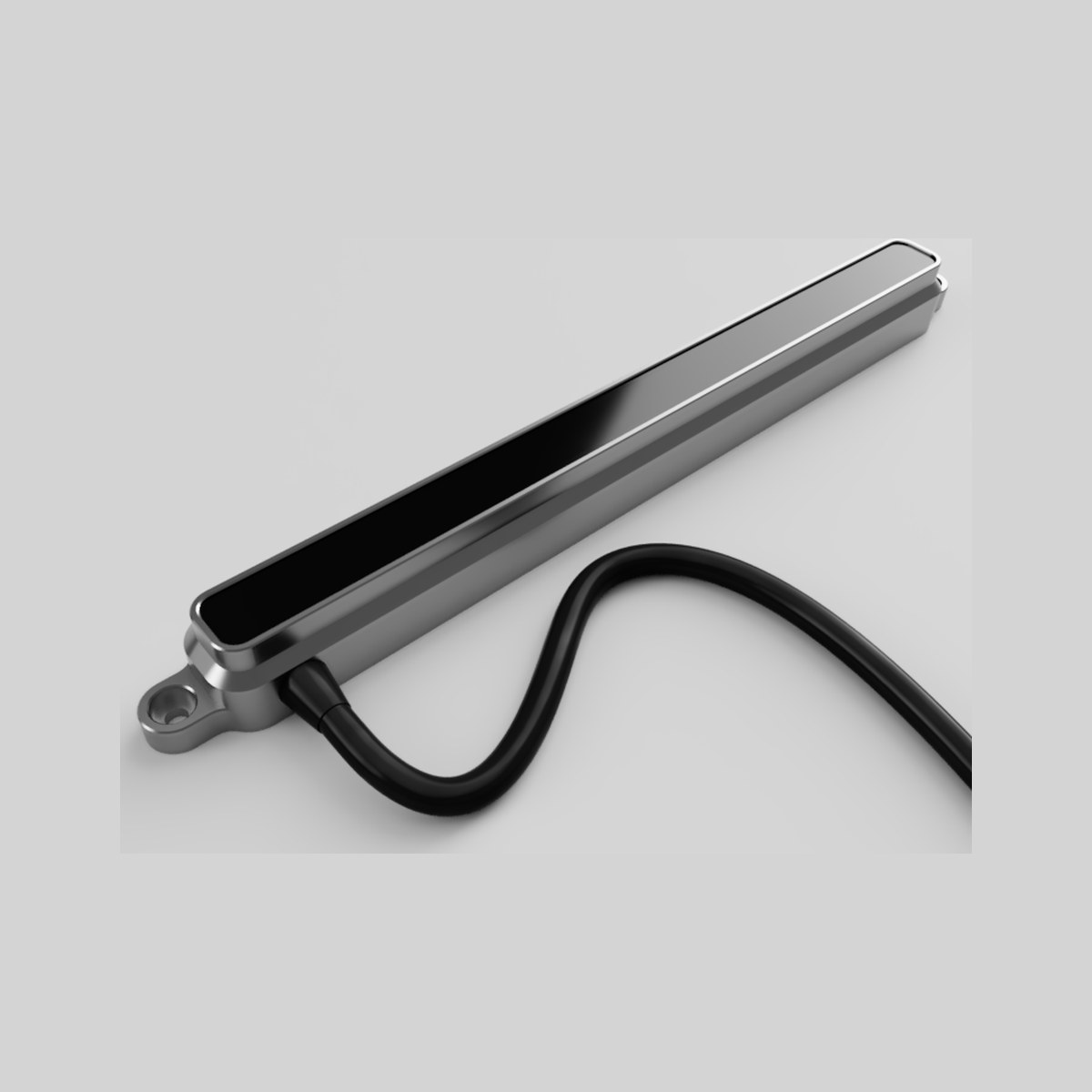

The SIDE-ENHANCED is a low-cost, ultracompact, high-performance, multi-purpose side scan sonar module. It contains a logarithmic amplifier which combines high-sensitivity and high-dynamic range, a high performance processor with DSP, and MEMS inertial sensors. Its solid-state design within a light weight rigid polyurethane case makes it a durable and unpretentious operational device for industrial applications.

It’s easy to get started with a simple UART interface and open source examples. Its binary protocol provides for maximum performance and data integrity checking. Updating the firmware is simple, providing the most current features or even individualized solutions according to customer needs. Built-in non-volatile flash memory saves its settings even when not connected to power or a host.

Applications

  • Underwater ROV/AUV equipment
  • Obstacle avoidance
  • Bathymetric surveys
  • RC toys and robotics
  • Education and experiments

Gallery

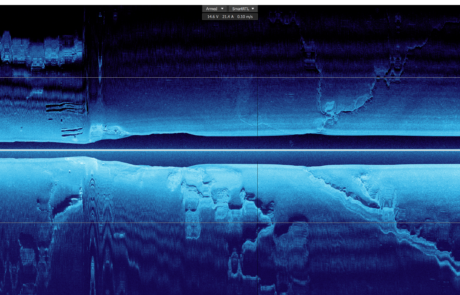

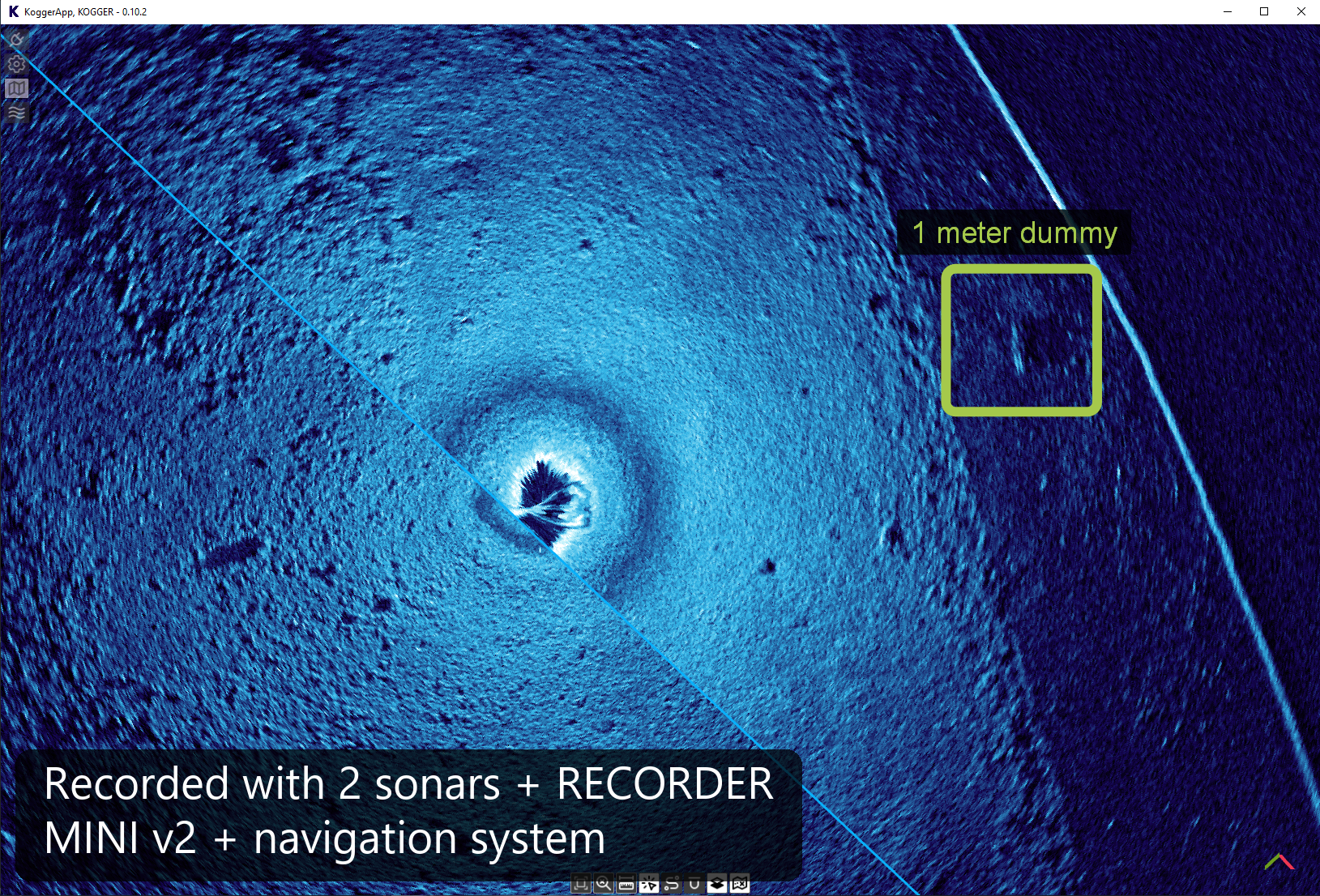

Examples of raw data recorded

Example 1 (15mb)
example 2 (47mb)
example 3 (108mb)

Technical details

Performance
Resolution 1 cm range
DSP 2.5 mm range
Echo rate 100 Hz @ 5 m
50 Hz @ 10 m
25 Hz @ 25 m
12.5 Hz @ 50 m
IMU Accelerometer + Gyroscope
Embedded AHRS 100 Hz update rate
Amplifier 95 dB range
UART up to 921600 bps
Electrical
Supply 5 — 14 V
Current 0.2 A (typ.),
0.7 A (peak)
Logic level 3.3 — 5 V
Acoustics
Frequency  385 kHz, 700kHz
Beamwidth 0,6° х 45°
Range 0.3 — 40 m
